Physical Characteristics;
Voltage：5V
Stand-by Current：140mA
Starting Current：260mA
Work Current：210mA
Performance Characteristics;
Image (Pixels)：CMOS 640 pixels (H) x 480 pixels (V)
Light Source：(indicator light) Blue color LED; (Illumination) Red color LED
Field of View：39°(H) X29°(V)
Roll / Pitch / Yaw：360°, ±65° , ±65°
Print Contrast：20% minimum reflective difference

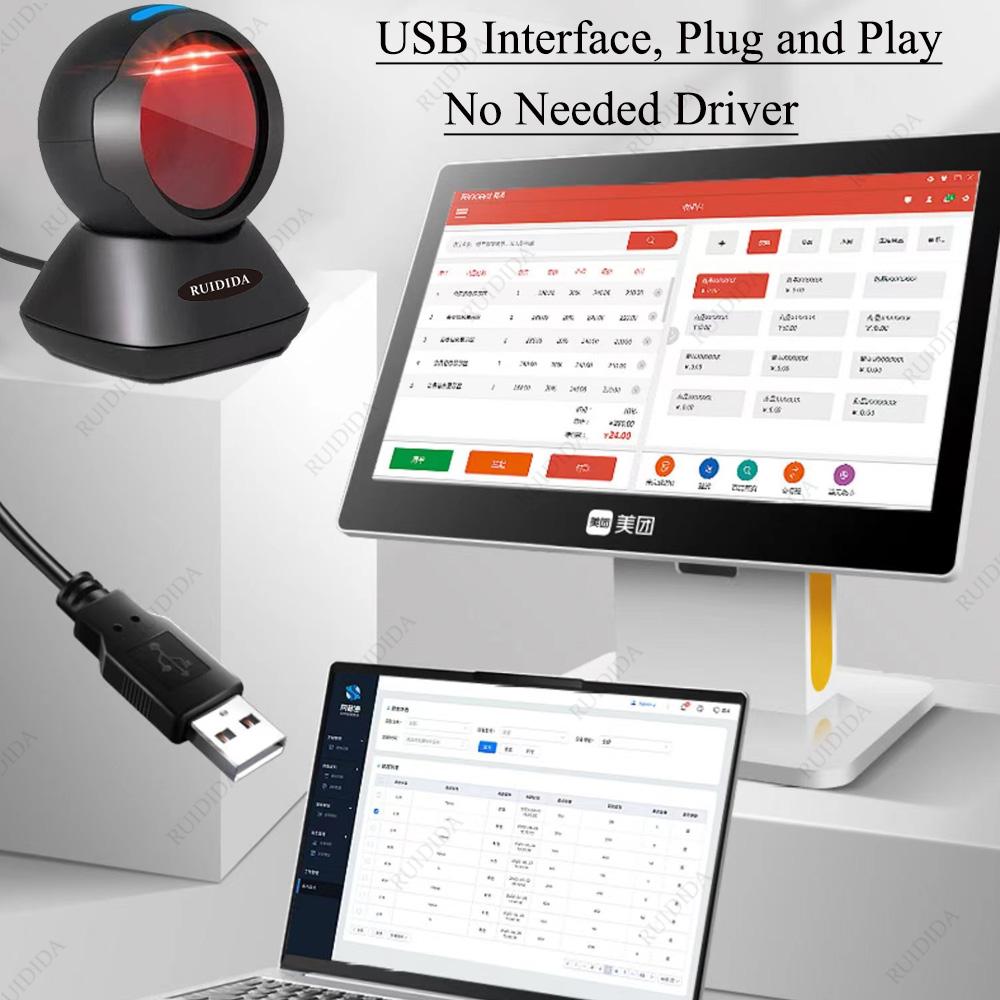

Interfaces Supported：USB
Resolution：≥4mil

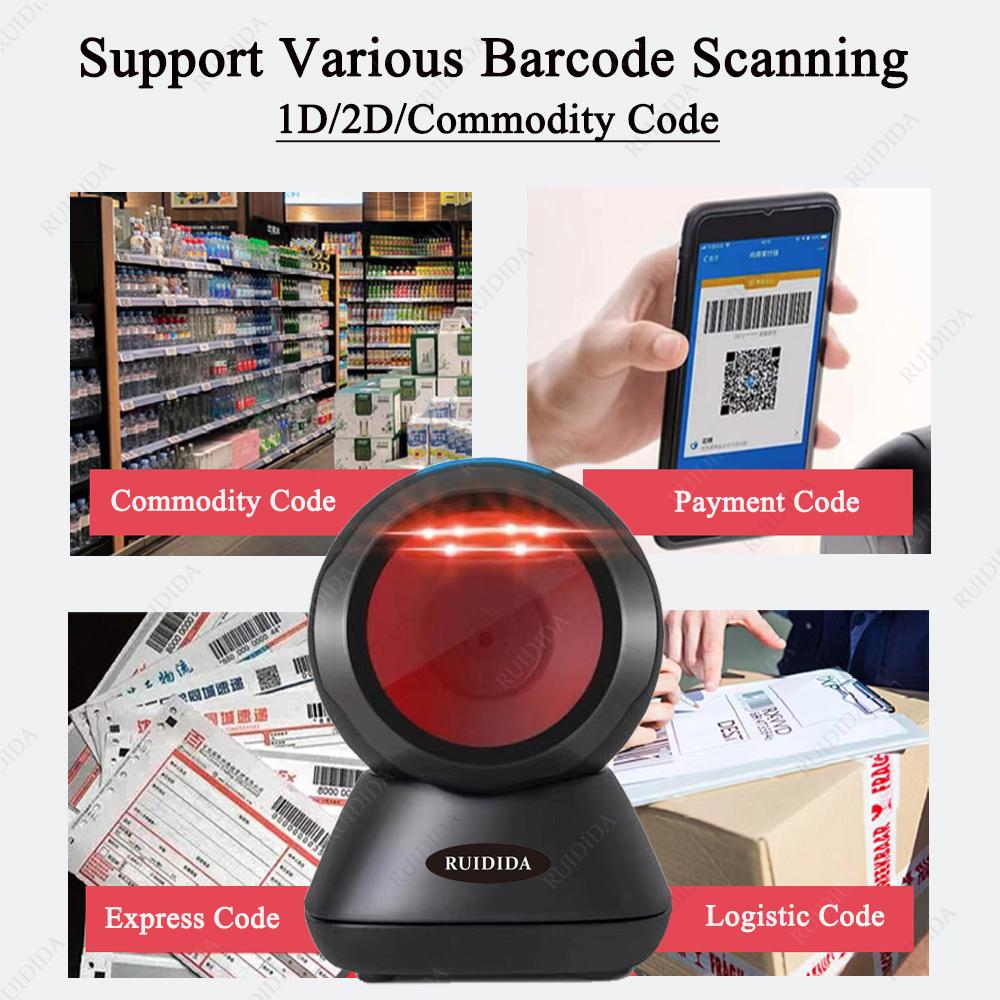

Symbology Decode Capability;
1-D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight
2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、
EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar
Expanded、China Post(Hong Kong 2 of 5)、Korea Post.
2-D: Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、
Data Matrix、MaxiCode、Aztec、HANXIN.
User Environment;
Operating Temperature：-20°C to 60°C
Storage Temperature：-30°C to 70°C
Humidity：5% to 95% relative hum idity,non-condensing
Shock Specifications：Designed to withstand 1.2m(5’) drops
Ambient Light Immunity：0-100,000 Lux.
Decode Ranges
Code39(5mil)：0-6cm
Code39(13mil): 0-15cm
QR(20mil)：0-10cm
(Alipay QR 3*3)：1-28cm
Performance may be impacted by bar code quality and environmental conditions
Note:
The default setting is English keyboard, if your barcode has specail characters, change your computer keyboard in English.
