【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

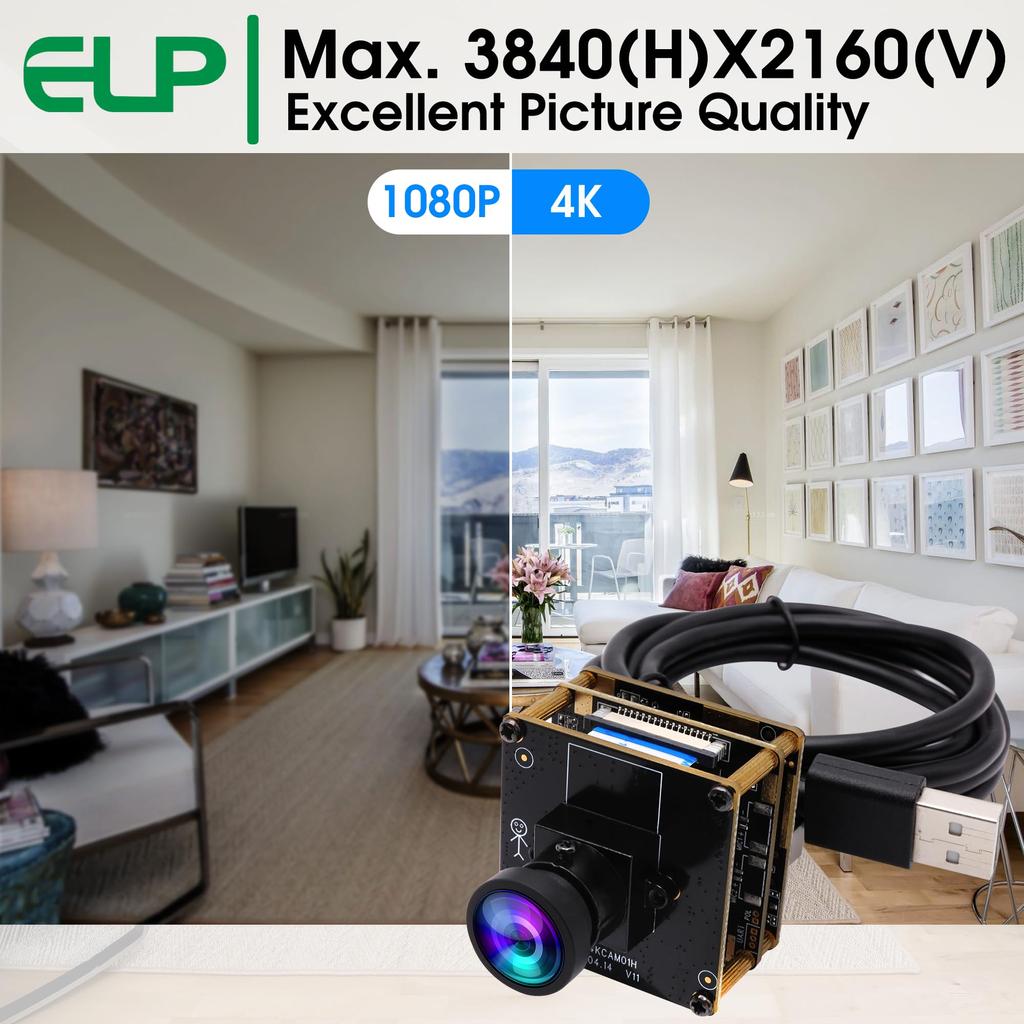

4K USB & HDMI camera, Type C and HDMI simultaneous output. Max. 3840X2160.
2X digital zoom with high quality 1/2.8 inch IMX415 color CMOS image sensor.
It uses a low distortion lens with a wide angle of 120 degrees, and the HFOV is about 120-125 degrees.
H.264/MJPEG/YUY2 is optional and can drive 3840x2160 MJPEG 30fps/ H.264 30fps.
High-speed USB 2.0 interface camera module for embedded applications, low power consumption, small form factor, and thin profile.
Plug and play, UVC compliant. Simply connect the camera to your PC, laptop, Android device, or Raspberry Pi using the included USB cable, without the need to install any additional drivers.
Applications: Highly recommended for video surveillance systems, light burn cameras for laser engravers/laser cutters/routers, octoprint 3D printers, live streaming, video conferencing, vehicle cameras, and other vision applications.
Sensor 1/2.8” SONY IMX415
Maximum resolution 3840(H)*2160(V)
Default resolution 3840(H)*2160(V)
Sensitivity 0.65V/lux-sec@550nm
Pixel size 1.45µm x 1.45µm
Video compression MJPEG / YUY2(YUYV) / H.264 / H.265
Digital zoom 2x digital zoom
Resolution and frame rate 3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps
2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps
1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps
1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps
1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps
960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps
640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps
640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps
Image processing time Approximately 8 seconds after opening the preview software
Center resolution 1000 LW/PH (center)
S/N ratio 30 dB
Minimum illuminance 0.2 Lux
Shutter type Electronic rolling shutter/frame exposure
Connection Port Type USB 2.0 Interface &HDMI V 1.4 Interface
AEC support
AWB support
AGC support
Adjustable parameters brightness, contrast, saturation, hue, sharpness, gamma, white
Balance, backlight compensation, exposure
Power and Interface USB Type-C power supply, simultaneous use of Type-C and HDMI display
Operating voltage DC 5V
Operating current 480-500mA
Storage temperature -20°C to 80°C
Operating temperature -10°C to 70°C
2 USB cables
(1 x 1.2m cable with Type-C port, 1 x 1.5m cable with HDMI port)
Operating system request
Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC
MAC-OSX10.4.8 or later Android 5.x or later
