Description:
This 2 gang blue LED rocker switch panel with 3.1A dual USB port which can be widely used for 12-24V cars, caravans, boats, yachts, marine etc.
Features:
High-end 2-gang rocker switch panel with blue LED work light.

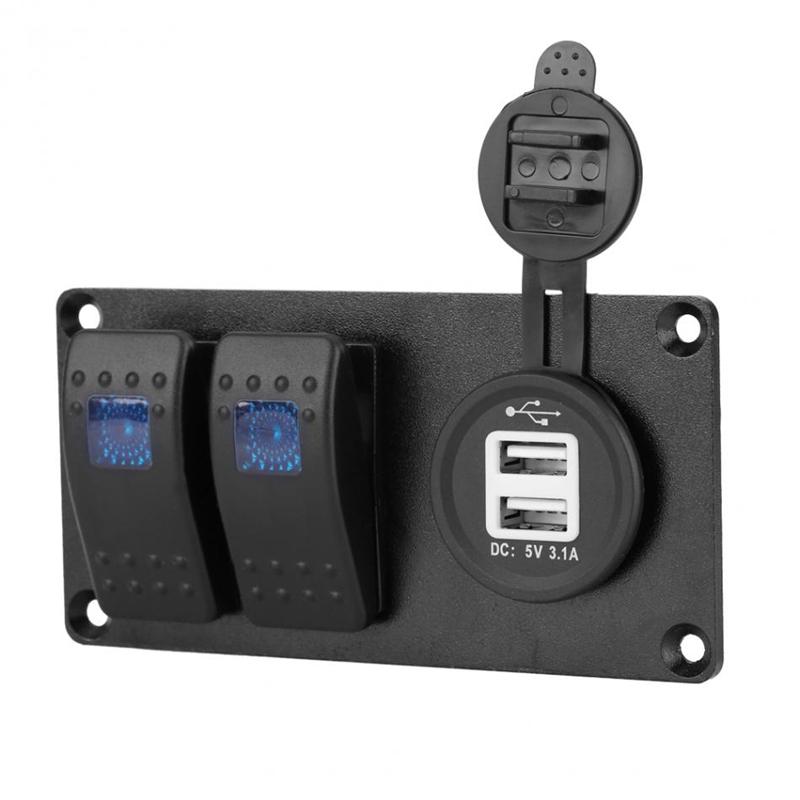

3.1A dual USB port can satisfy your charging needs, such as charge for mobile phones, MP3 Player, camera and etc.
Environmental protection and flame-resistant materials, durable and waterproof.
Includes complete heat-shrink tubes, terminals and mounting screws, easy installation.

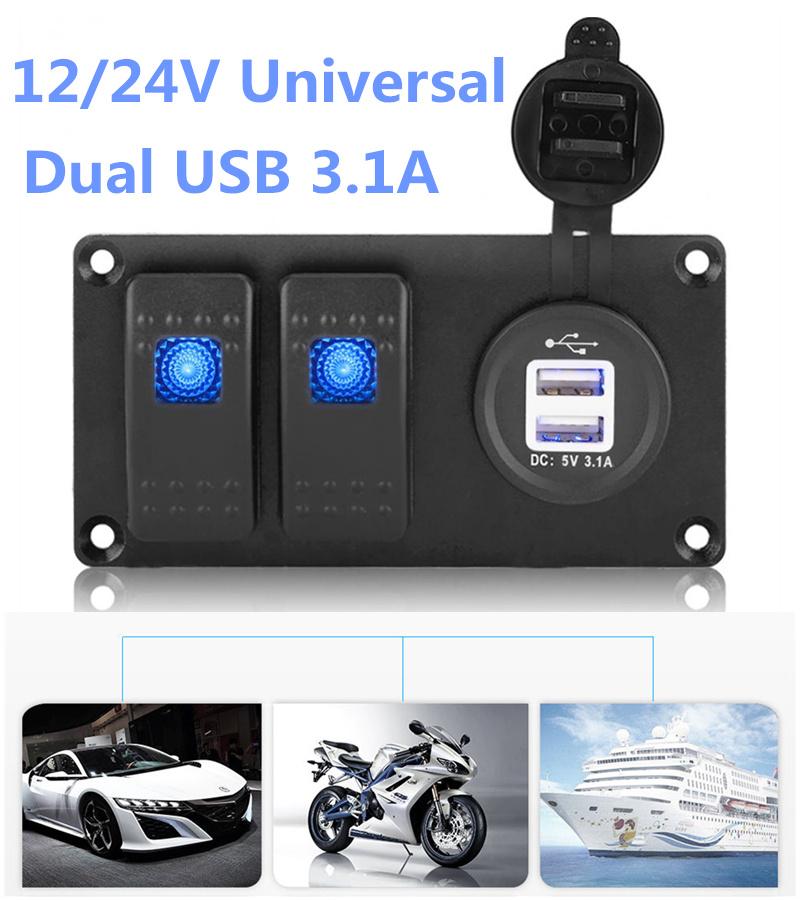

Universal fit for 12V-24V cars, caravans, RV, boats, yachts marines etc.
Specifications:
Dual USB Port:
Input Voltage: 12V-24V
Output Voltage: 5V
Output Current: 3.1A(1A + 2.1A)
Rocker Switch:
Material: PA66 + Aluminum Plate
Color: Black
LED Light Color: Blue
Voltage: 12V-24V
Waterproof Level: IP66

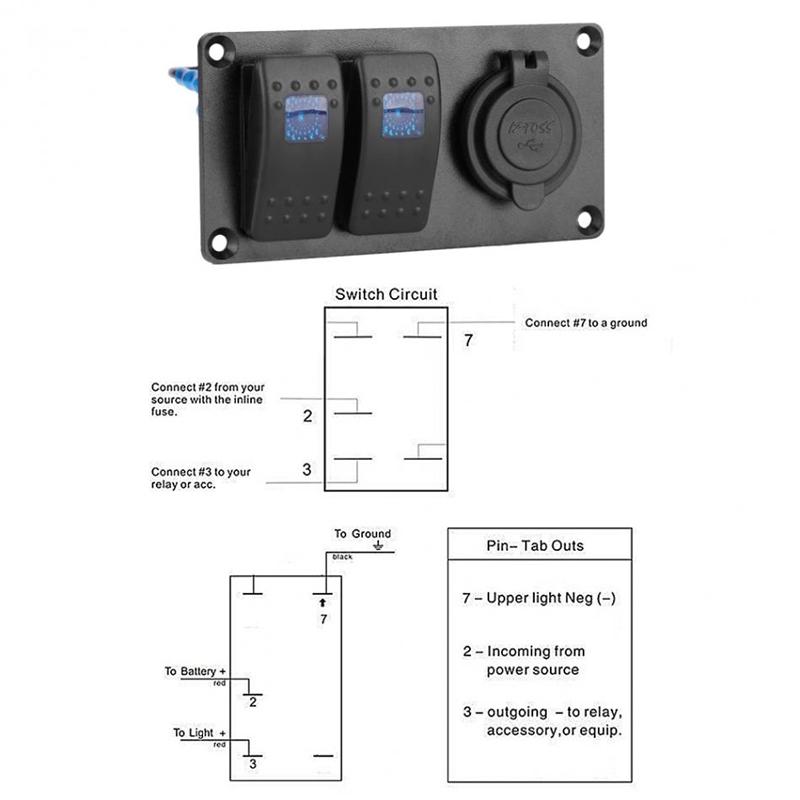

Pin: 3 Pin
Max Continuous Load: AC 125V/10A, 12V/20A, 24V/10A
Max Load and Time: DC 12V/23A 24V 11.5A 5 seconds/times can continuous 30 times
Minimum Charging Current: (0)
DC Maximum Voltage: 30V
DC Minimum Voltage: 3V
Maximum Contact Load: AC 125V/10A, 12V/20A, 24V/10A
Maximum Break Contact: AC 1500V 1 minute

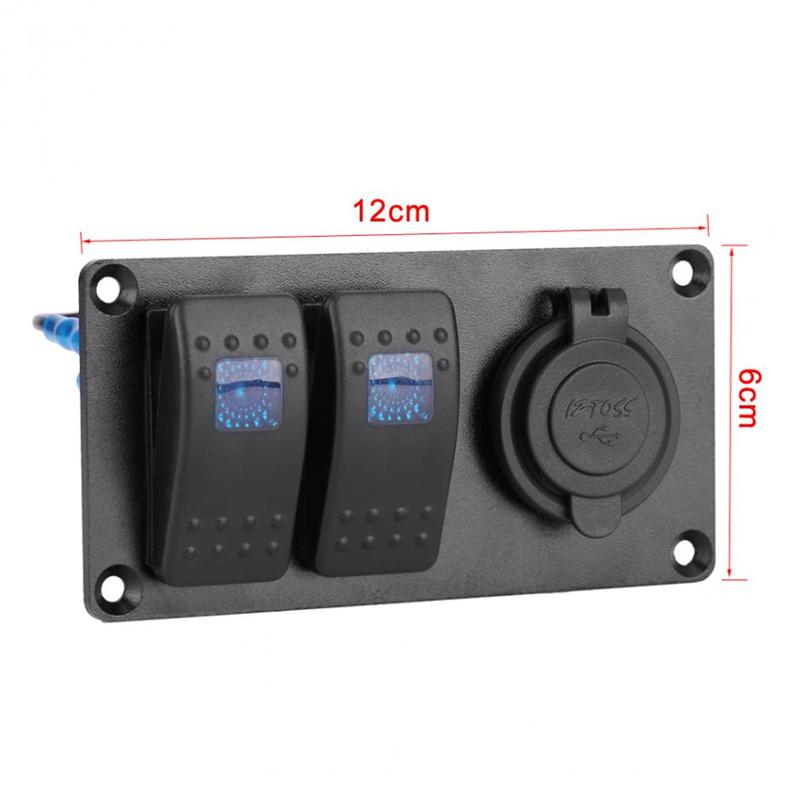

Size: 12 x 6cm/4.7" x 2.3"
Package Weight: approx. 155g
Fitment: Fit for most 12V-24V cars, RV, caravans, travel trailers, boats, yachts, marine etc.
Package Included:
1 x Rocker Switch Panel
4 x Screws
4 x Heat Shrink Tubes
2 x Terminals
Notes:
1. Easy to install, but professional installation is highly recommended!
2. Please allow 1-3cm error due to manual measurement. Thanks for understanding!
