[CPU/RAM/Slot] CPU: Intel Processor N series Intel Core i3-N305 processor. Chipset: Intel Processor N Series Intel Core i3-N305. BIOS: AMI 128M BIOS, ACPI support, boot after incoming call. RAM: DDR5 4800MHz. Capacity: Maximum support 32GB. Slot: 1*DDR5 SODIMM

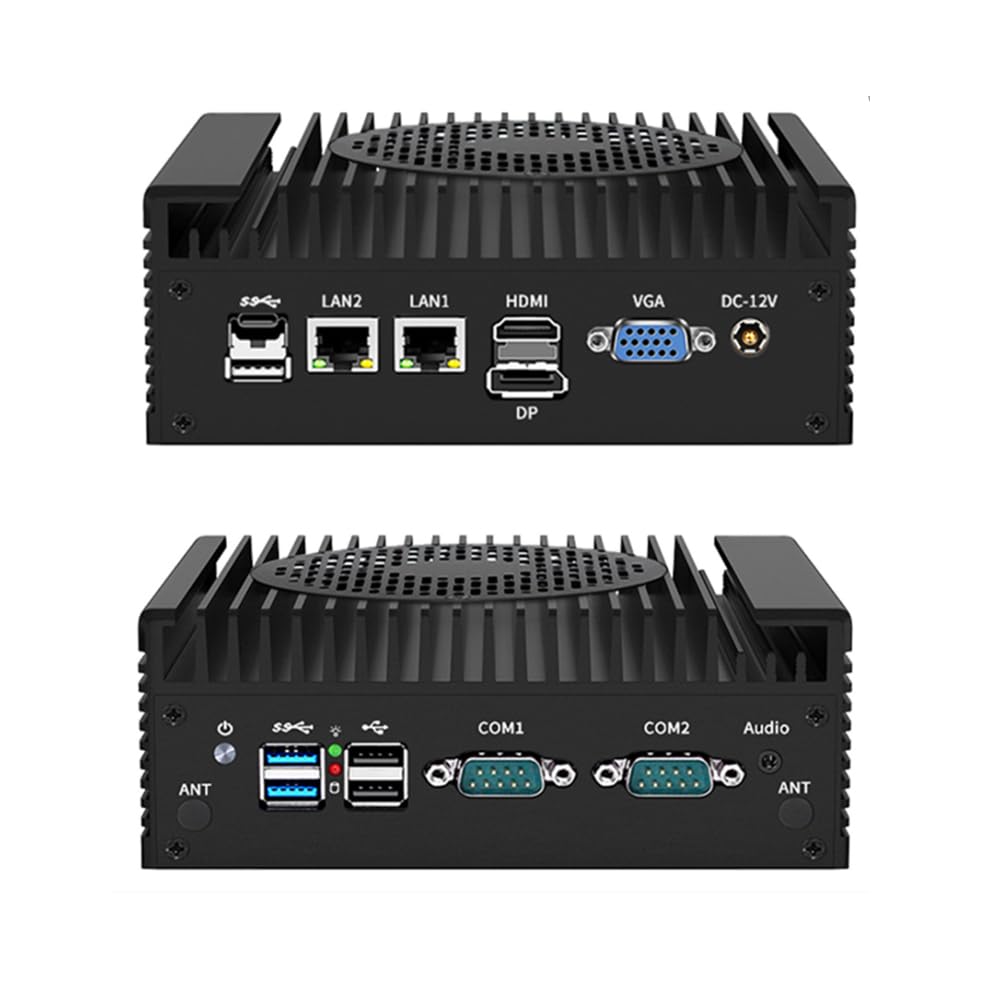

[Graphic Interface Display] Graphics controller: CPU integrated (specific performance depends on CPU). Interface: 1*HDMI, 1*DP, 1*Type-C, 1*VGA (DP, HDMI optional). Multi-display support: HDMI/DP/VGA/Type-C, synchronous/asynchronous.
[SSD/Network/USB] Storage: 1 * SATAIII 6Gb/s. 1**M.2 SSD(NGFF/PCIE Adaptive)1*M.2_WIFI. Network: 2 * RTL8111H Gigabit network card, 1 * M.2_WIFI interface, 1 * MPE (4G/WIFI), 1 * M.2_5G interface, 1 * SIM. USB: External 3*USB2.0 + 2*USB3.2 Gen2. Serial port: 2*COM (COM1 and 2 support RS232/485).
[Serial Port/Expansion/Watchdog/Encryption] Serial port: 2*COM (COM1 and 2 support RS232/485). Expansion interface: 1*GPIO interface. Watchdog: Watchdog timer from 4 to 255 seconds. Watchdog: Watchdog timer from 4 to 255 seconds. Hardware encryption: TPM2.0 hardware encryption (optional).
[Fan/Power supply/Usage environment/Size] Fan: SYS fan speed detection and intelligent control (optional). Power supply: DC12V, DC head 5.5 x 2.5mm. Operating temperature: -20~60℃, Storage temperature: -20~60℃, Operating humidity: 0~90%RH, relative humidity, non-condensing, Storage humidity: 0~90%RH, relative humidity, non-condensing. Plate size: 120x120mm.
Parameters:
[Main parameters]
Capacity: maximum support 32G
Slot: 1*DDR5 SODIMM
Technology architecture: DDR5 4800MHz
Chipset: Intel Processor N Series N305
CPU: Intel Processor N Series N305 Processor
Graphics controller: CPU integrated (specific performance depends on CPU)
Multi-display support: HDMI/DP/VGA/TYPEC, synchronous/asynchronous
BIOS: AMI 128M BIOS, ACPI support, boot after incoming call
Interface: 1*HDMI interface, 1*DP interface, 1*TYPE-C interface, 1*VGA interface (DP, HDMI optional)
[Storage]
1*SATAIII 6Gb/s
1**M.2 SSD(NGFF/PCIE Adaptive)1*M.2_WIFI
【internet】
2 * RTL8111H Gigabit Network Card, 1 * M.2_WIFI Interface, 1 * MPE (4G/WIFI), 1 * M.2_5G Interface, 1 * SIM
[Serial port/extension functions]
USB: External 3*USB2.0 + 2*USB3.2 Gen2
Serial Port: 2*COM (COM1 and 2 support RS232/485)
Expansion interface: 1*GPIO interface
[Watchdog/Encryption]
Watchdog: Watchdog timer from 4 to 255 seconds
Fan: SYS fan speed detection and intelligent control (optional)
Hardware encryption: TPM2.0 hardware encryption (optional)
Usage environment:
Operating temperature: -20~60℃
Storage temperature: -20~60℃
Operating humidity: 0~90%RH, relative humidity, non-condensing
Storage humidity: 0-90%RH, relative humidity, non-condensing
specification:
Dimensions: 148*125*55mm
Plate size: 120×120mm
Shell: aluminum alloy
Package included:
1 x PC
1 x power supply
