Product Introduction
This adapter cable is used to connect a PC equipped with a USB Type-C port capable of video output to a display or TV with an HDMI interface.

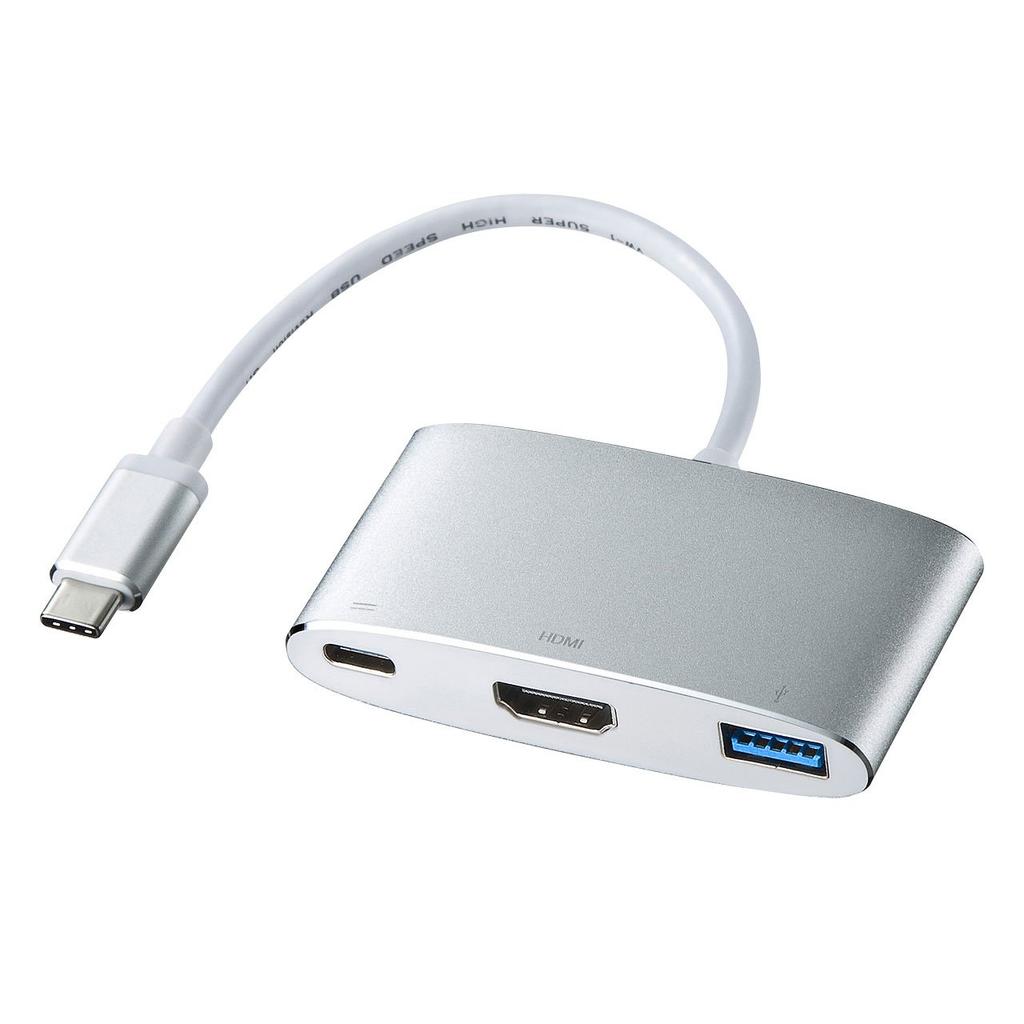

This multi-adapter features an HDMI output port, a USB 3.0 port, and a Type-C port.
- This adapter cable connects to a USB Type-C port that complies with DisplayPort Alternate Mode (hereinafter referred to as DP alt mode) and converts the video signal to HDMI.
- Supports 4K@30Hz resolution
If your PC's graphics performance is compatible, you can output at resolutions up to 4K@30Hz.
*The PC, HDMI cable, and display must all support 4K@30Hz.
- USB port for connecting USB peripherals
USB port for connecting USB 3.0/2/0/1.1 USB peripherals
- USB Type-C port for USB charging and connecting USB devices
This port can be used to connect USB Type-C peripherals and for USB charging. (USB 3.1 Gen 1 compatible)
For devices that can be charged via a Type-C port, such as the MacBook (Early 2015/Early 2016), you can charge the device while outputting via HDMI.
*Only for models that support Type-C charging.
- Use an external display in extended display mode to work on a large screen workspace, or in mirror mode to use it for presentations on a projector or other device.
Supports digital audio output from the HDMI port.

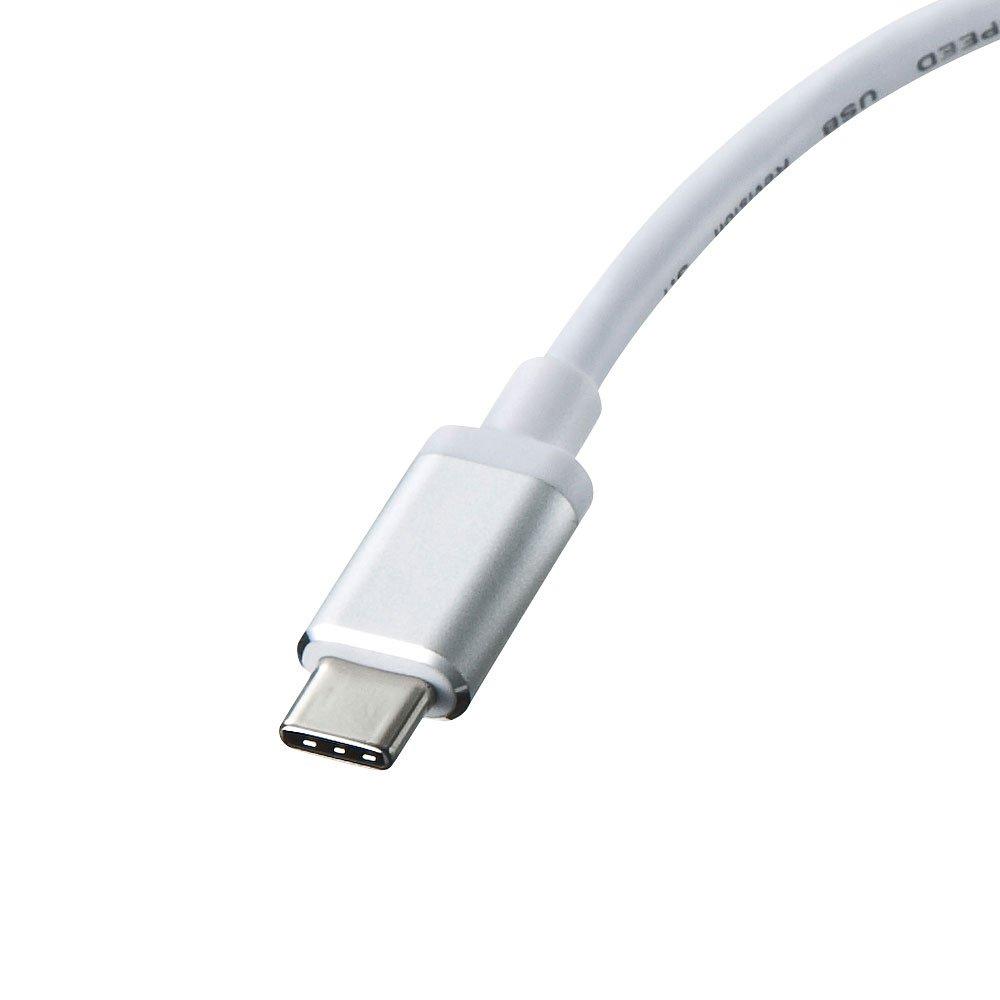

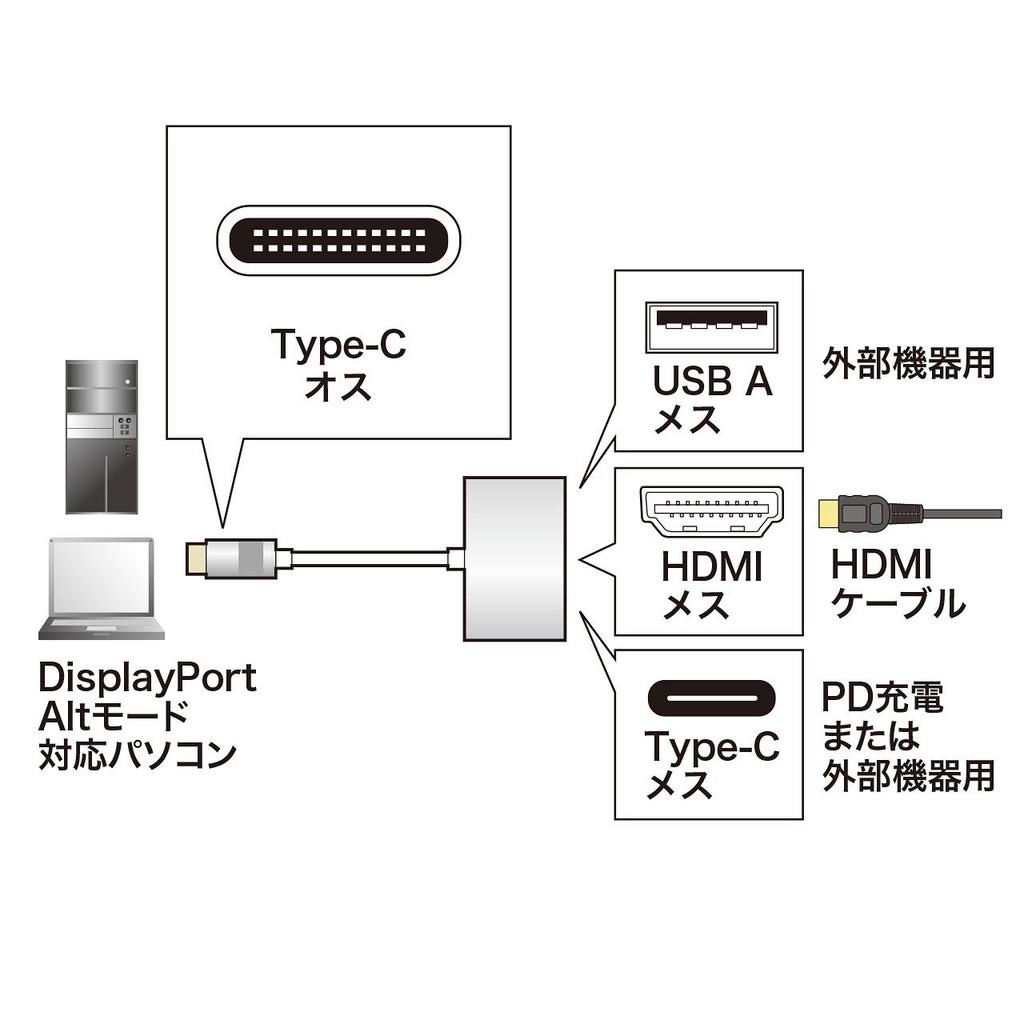

Connector: USB Type-C male - HDMI (HDMI Type A) female + USB 3.0 A female connector + USB Type-C female connector
Resolution: Up to 3840x2160 (4K 30Hz supported)
USB Port: USB 3.0 A female connector (USB 3.1 Gen 1)
USB Port: USB Type-C female connector (USB 3.1 Gen 1)
Cable Length: Approx. 120mm
Dimensions (female connector): Approx. 74.0mm W x 38.0mm D x 14.8mm H
Color: Silver/White
Cable Diameter: Approx. 4.2mm
Compliant: DP alt mode/HDMI 1.4
Caution (Disclaimer): Please read carefully.
No
This is a conversion adapter cable used to connect a PC equipped with a video-capable USB Type-C port to a display or TV with an HDMI interface.
This multi-adapter features an HDMI output port, a USB 3.0 port, and a Type-C port.
This adapter cable connects to a USB Type-C port that complies with DisplayPort Alternate Mode and converts the video signal to HDMI.
If your computer's graphics performance is compatible, it can output at a maximum resolution of 4K@30Hz.
If your device is compatible with the Type-C port, you can charge it while outputting via HDMI.
