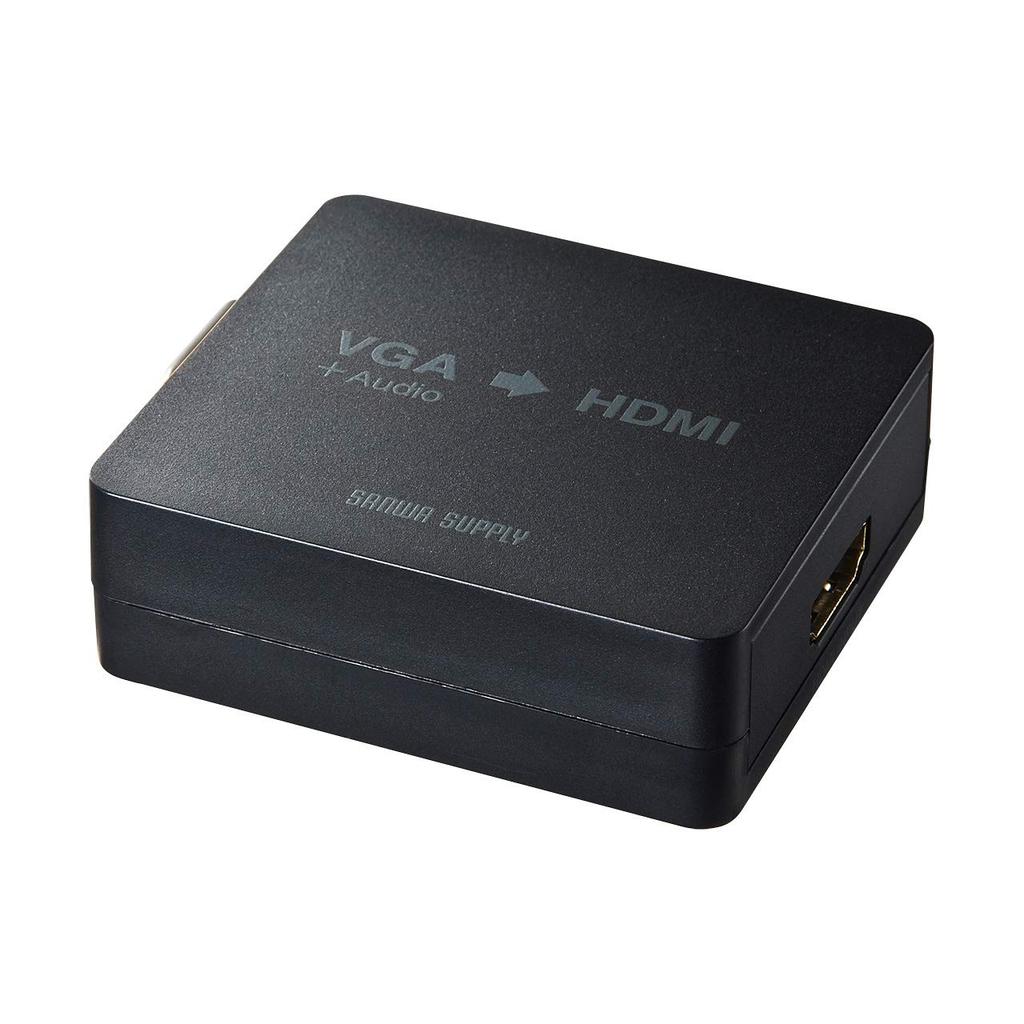

Mini D-Sub (HD) 15-pin Analog VGA to HDMI Converter
This converter converts Mini D-Sub (HD) 15-pin Analog VGA signals to HDMI signals.

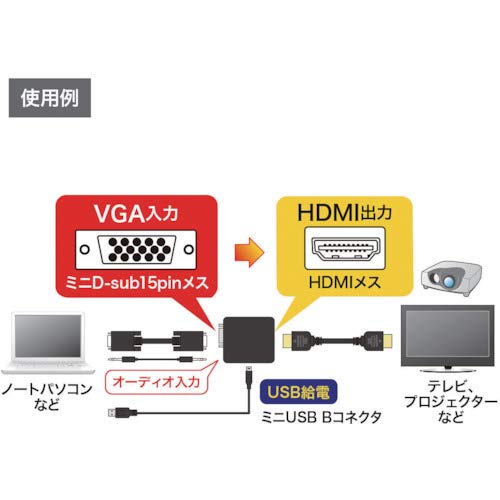

Ideal for connecting and displaying on an HDMI-equipped display from a computer equipped with a Mini D-Sub (HD) 15-pin analog VGA port.
It also simultaneously converts 3.5mm stereo audio signals, allowing you to output both video and audio from an HDMI display.
It is USB bus-powered, making it easy to install even in mobile environments.
No driver installation is required. Simply plug and play.
Compatible Devices: Windows (DOS/V) PCs, Apple Macintosh
*Models with a Mini D-Sub (HD) 15-pin display connector
Compatible Output Devices: TVs and PC monitors with an HDMI input terminal, etc.
*Displays that support 1920 x 1200 resolution may not display properly.
Please use a display or TV with a resolution of 1920 x 1080 or less.
[Interface]

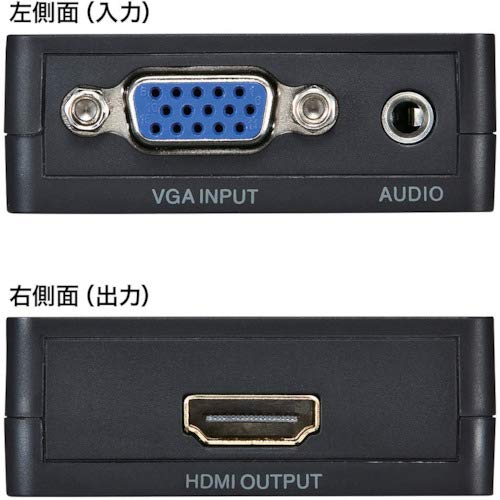

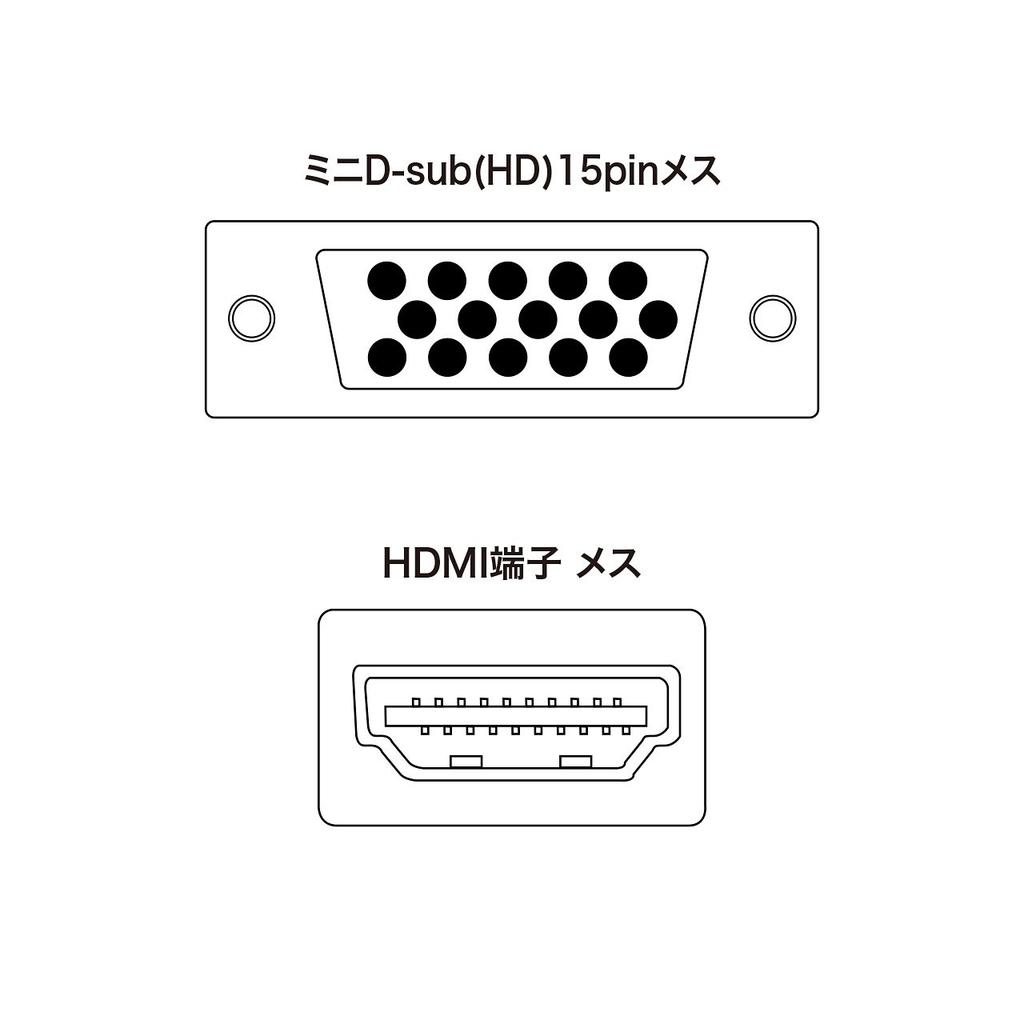

Input: Mini D-sub (HD) 15-pin female x 1, 3.5mm stereo mini jack x 1
Output: HDMI Type A (19-pin) female x 1
[Supported Resolutions/Refresh Rates]
640x480 60Hz
640x480 72Hz
640x480 75Hz
640x480 85Hz
720x400 70Hz
800x600 60Hz
800x600 72Hz
800x600 75Hz
800x600 85Hz
1024x768 60Hz
1024x768 70Hz
1024x768_75Hz
1024x768_85Hz
1152x864_75Hz
1280x720_60Hz
1280x768_60Hz
1280x768_75Hz
1280x768_85Hz
1280x800_60Hz
1280x800_75Hz
1280x800_85Hz
1280x960_60Hz
1280x960_85Hz
128 0x1024_60Hz
1280x1024_75Hz
1360x768_60Hz
1366x768_60Hz
1400x1050_60Hz
1440x900_60Hz
1600x900_60Hz
1600x1200_60Hz
1680x1050_60Hz
1920x1080_60Hz
Supported Audio Formats: Linear PCM 2-channel (48kHz)
Input DDC Signal: 5.3V
Power Consumption: 2W
Operating Temperature/Humidity: 0-50°C, 80% or less (non-condensing)
Storage Temperature/Humidity: -20-60°C, 80% or less (non-condensing)
Material: ABS
Size: 60mm W x 54mm D x 20mm H
Weight: 42g

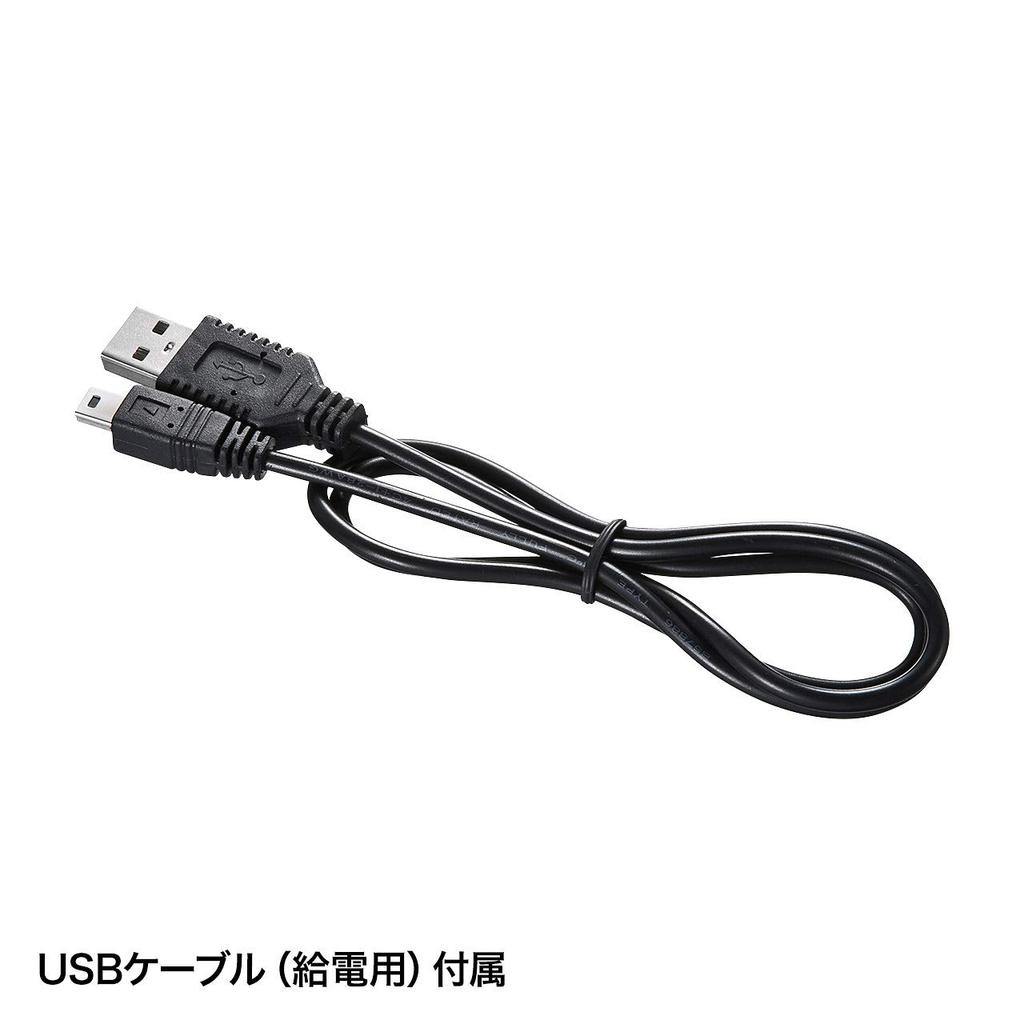

Accessories: USB cable (for power supply), instruction manual
Please check before purchasing.
- LCD TVs, projectors, and computer displays must also support the above resolution and refresh rate.
- 1920x1200 resolution is not supported.
- 1920x1200 resolution displays may not display properly.
- Please note that even if the above resolutions are supported, display may not function properly if the refresh rate is different.
This product converts analog VGA signals to digital HDMI signals, but compatibility issues such as inability to recognize or display on some devices may occur.
Operation is not guaranteed with all devices.
This converter converts a Mini D-Sub (HD) 15-pin analog signal (VGA) to an HDMI signal.
It is ideal for connecting and displaying on an HDMI-equipped display from a computer with a Mini D-Sub (HD) 15-pin analog VGA port.
It also converts 3.5mm stereo audio signals, allowing you to output both video and audio from an HDMI display.
It is USB bus-powered, so it is easy to install, even in mobile environments.
No driver installation is required; simply plug and play.
